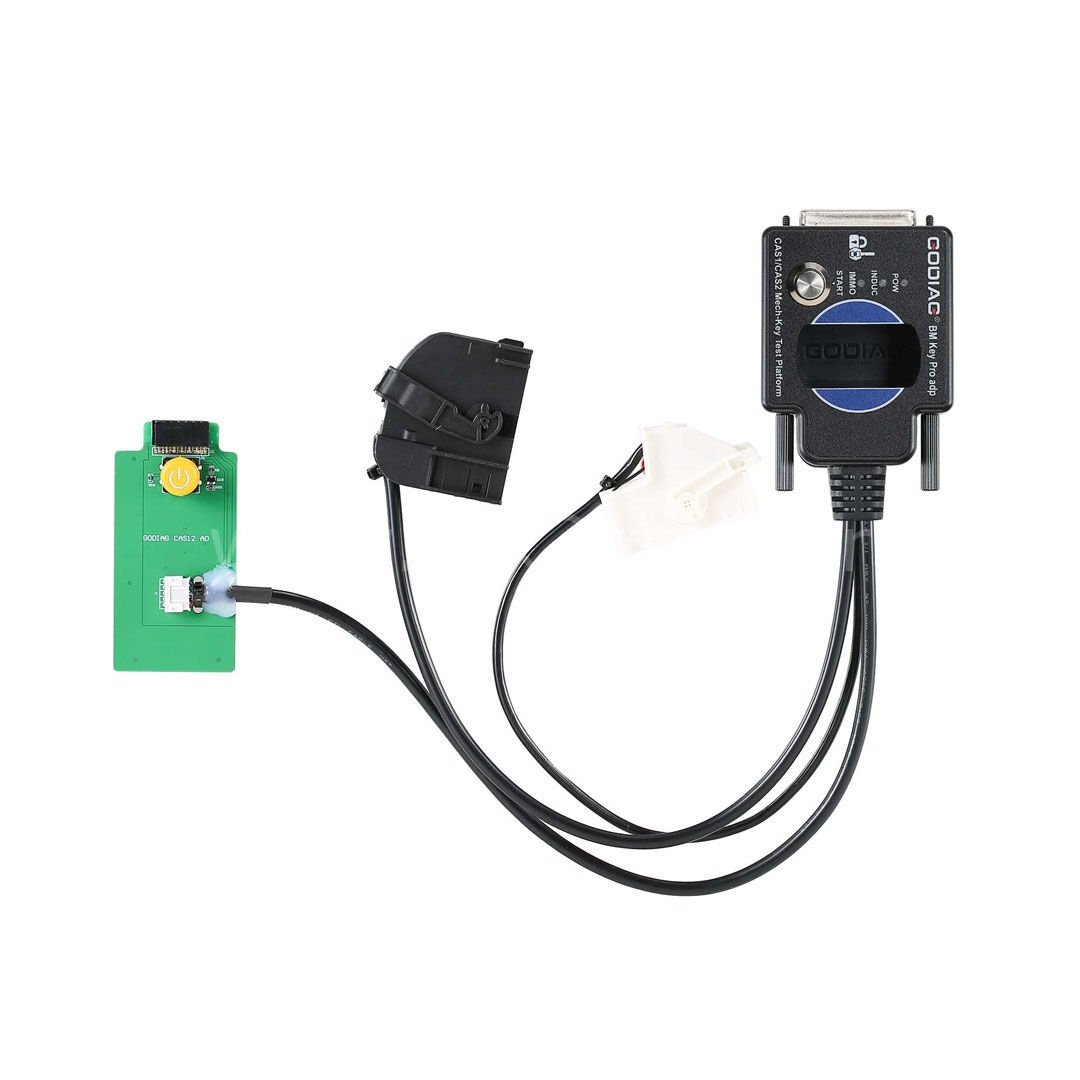

GODIAG BMW CAS1 / CAS2 Anahtar Test Platformu - CAS ile Anahtar Senkronizasyonu Tespiti

Note: GODIAG BMW CAS1/CAS2 Mech-Key Test Platform does not support semi-intelligent smart key CAS2 and cannot be used with diagnostic equipment or with GT100, GT100+. If necessary, please purchase a semi-intelligent smart key detection platform for the semi-intelligent smart key CAS2.

GODIAG BMW CAS1 / CAS2 Mech-Key Test Platform Features:

1. Detect CAS and key synchronization
2. Solder-free matching CAS1/CAS2 mechanical key
3. CAS data reading, writing and programming
4. All keys lost /adding keys matching
5. CAS key data backup
6. CAS module function judgment

GODIAG BMW CAS1 / CAS2 Mech-Key Test Platform Functions:

1.Check if the CAS1/CAS2 module and mechanical keys are synchronized.



2.Cooperate with the CGDI BMW to perform all key lost matching or key addition operations.
3.CAS1/CAS2 module diagnostics
4.CAS1 / CAS2 module programming

Synchronous Detection of Module and Key:

Check whether the CAS2 module and mechanical key can be synchronized:

Step 1: Connect the CAS2 module according to the connection diagram
Step 2: Put the key into the key sensing area
Step 3: Connect the power supply.
Step 4: Press the start switch (press the start switch once to turn on the CAS power and automatically detect whether the key and CAS are synchronized, press it again to turn off the CAS power and turn off the detection).
Synchronization judgment method: when the detection start switch is pressed, the Power indicator light will light up. If the key is synchronized with CAS2, the CAS module key induction coil indicator light will flash regularly. If it is an unsynchronized key, the key induction coil indicator light will only flash quickly for 2 seconds. [If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.]
Step 5: Press and hold the analog start/stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. The INDUC sensor indicator light also goes out. After releasing, the IMMO synchronization detection indicator light will light up. The INDUC sensor indicator light flashes.
